2.5ST MFI motor build

Nick Moss · Post by **Nick Moss** » Sun Jul 19, 2009 2:12 pm

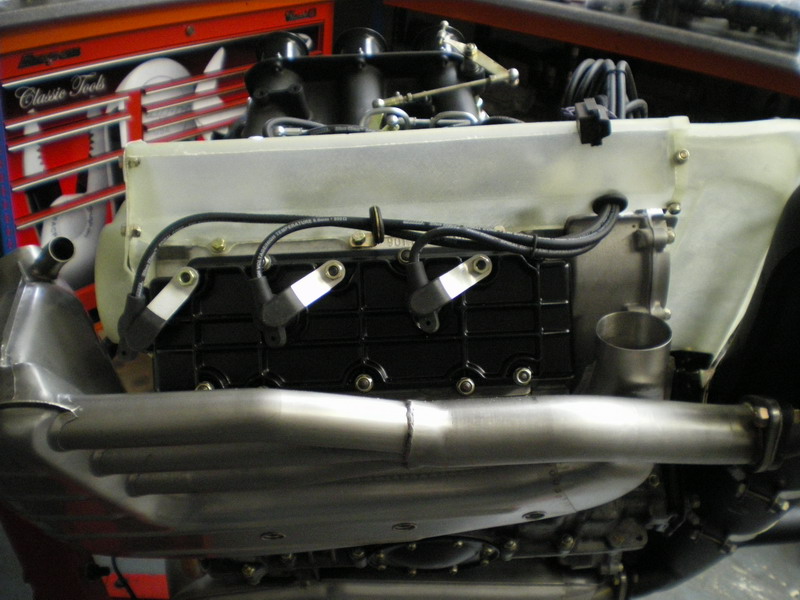

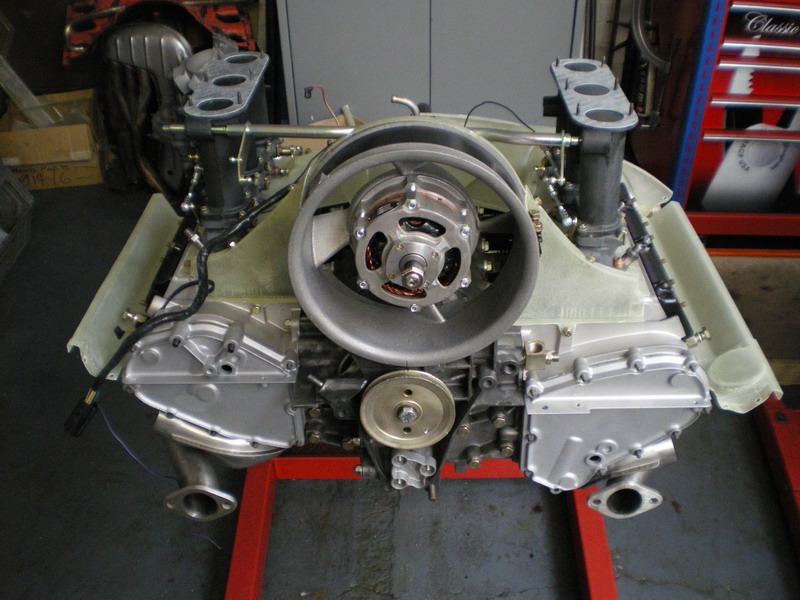

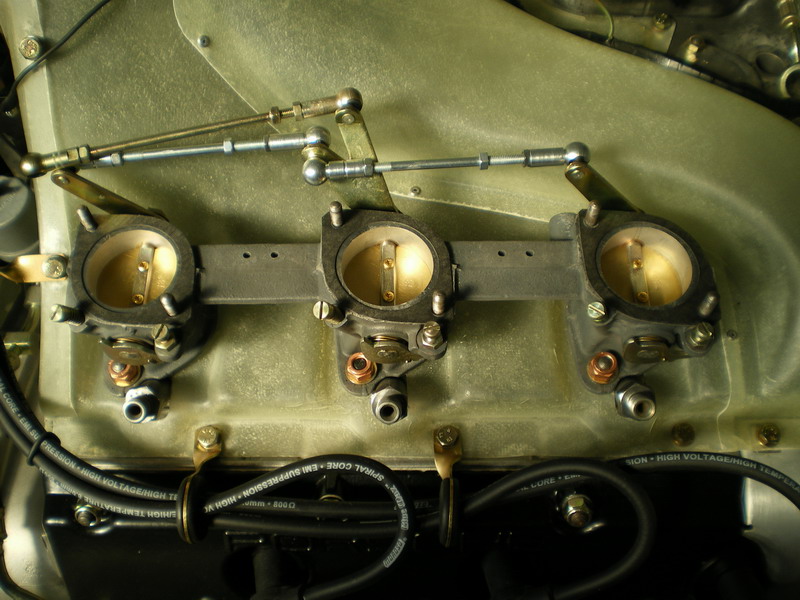

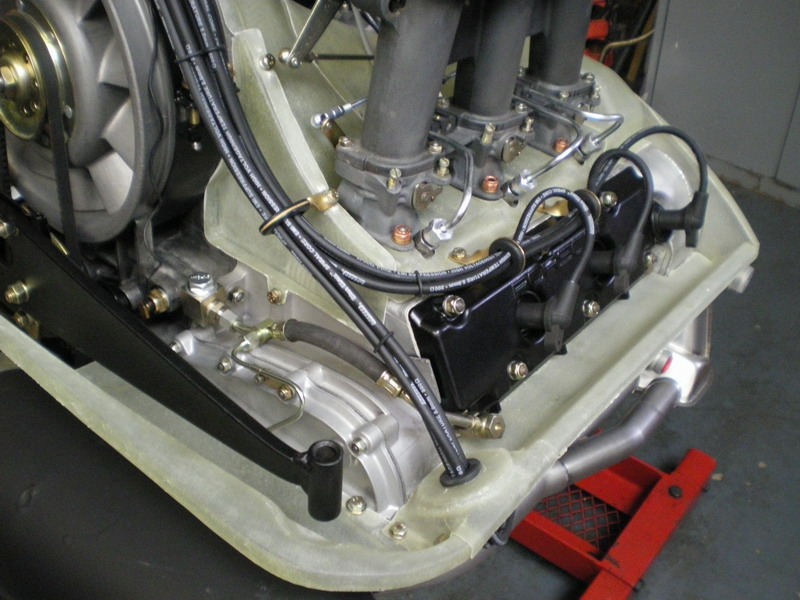

The "tinware" is lightweight GRP. The throttle bodies have been bored to 42mm, fitted with new butterflies and rods

Highfield · Post by **Highfield** » Sun Jul 19, 2009 5:21 pm

That is looking fabulous Nick.

What exchangers or headers have you bolted on there ?

What distributor will you be using.

Ian

Nick Moss · Post by **Nick Moss** » Sat Aug 15, 2009 6:18 pm

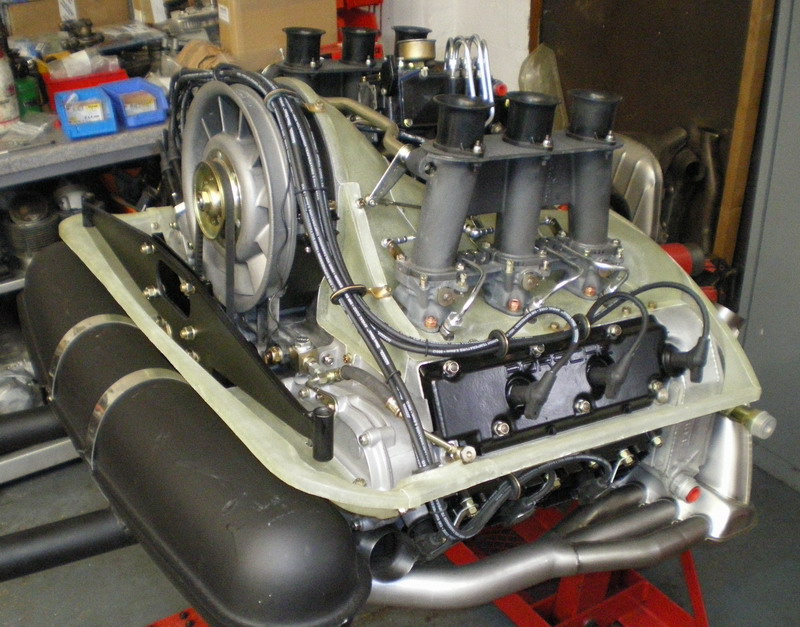

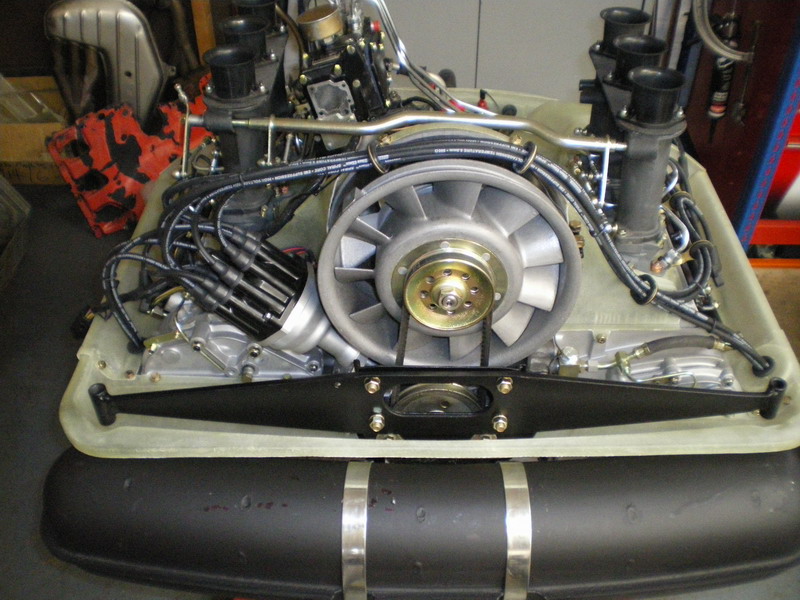

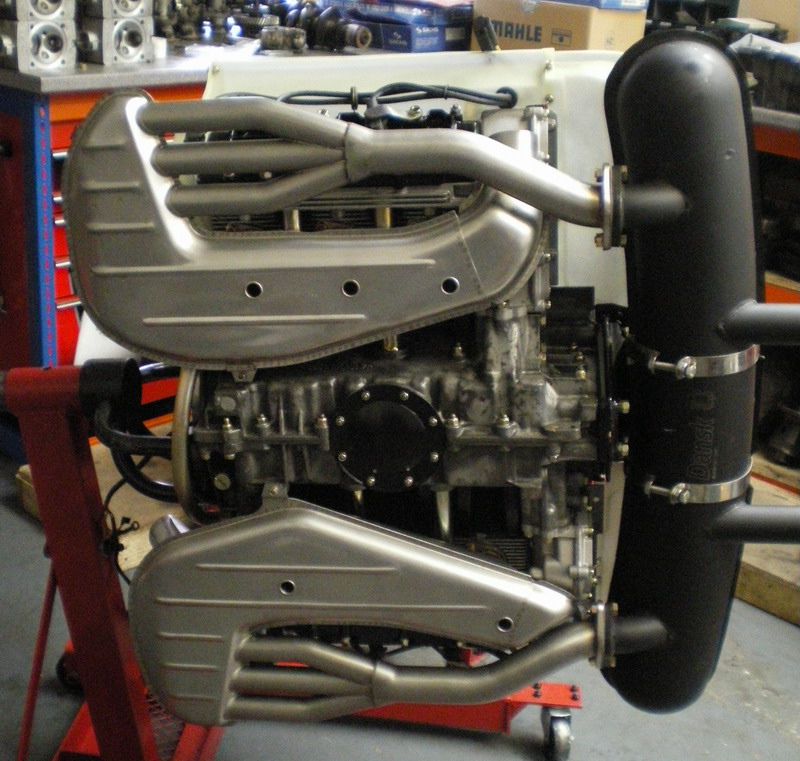

The heat exchangers are SSIs, the silencer is a Dansk Dual. Dizzy is from JB Racing. MFI pump by Francis Tuthill

Highfield · Post by **Highfield** » Sun Aug 16, 2009 10:13 am

Absolutely fabulous, the exact engine I would have in mine if I have the £££.

Hope to catch it (sound and visually) next year on a track somewhere.

Perhaps it will go to CLM 2010 ?

Ian

oliveR · Post by **oliveR** » Sun Aug 16, 2009 10:22 am

very nice Nick!
Do you already have a dyno sheet?

Nick Moss · Post by **Nick Moss** » Sun Aug 16, 2009 10:26 am

Do you already have a dyno sheet?

Not exactly. Although the engine is in the car, it will be some time before it gets fired up, then it will be straight onto Bob Watson's rolling road. Hoping for around 250 bhp.

Cam Arnott · Post by **Cam Arnott** » Sun Aug 16, 2009 10:35 am

Wow Nick

Not hard to see where the money went

Did you bead blast the dizzy body to remove the shine?

Lightweight_911 · Post by **Lightweight_911** » Sun Aug 16, 2009 11:03 am

Very nice work.

What will provide the sparks - twin Bosch CDI ? MSD ?

Is the space cam in the injection pump modified ?

Nick Moss · Post by **Nick Moss** » Sun Aug 16, 2009 12:51 pm

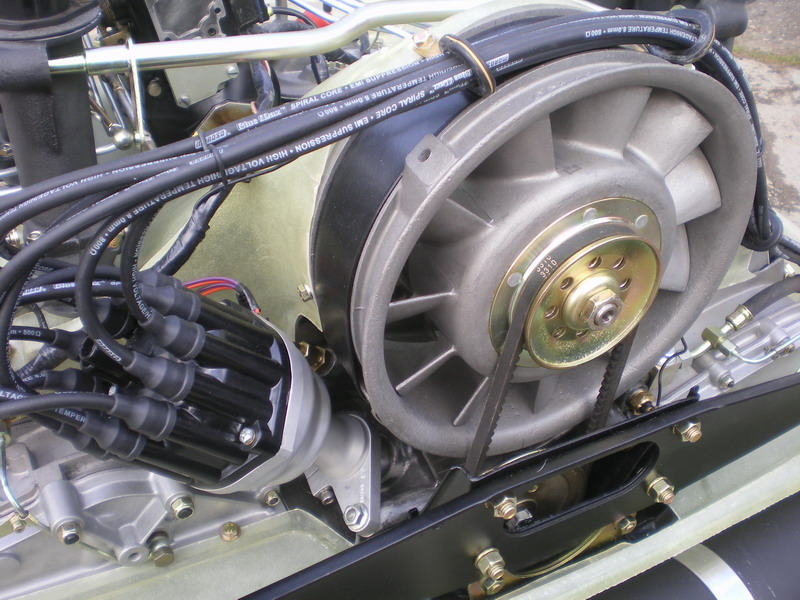

The dizzy housing was glass beaded to dull the finish. There are twin MSD boxes in the passenger compartment. The space cam is standard at the moment, until we run the engine up we won't know if we need to change the it, but we are prepared for that.

jtparr · Post by **jtparr** » Sun Aug 16, 2009 11:16 pm

lovely piece of work nick

Jp

atelier14 · Post by **atelier14** » Fri Oct 08, 2010 7:50 pm

Nick,

Did JB Racing also deliver the ignition wires and plug connectors which can be seen on this MFI engine?

Best
Christian

Nick Moss · Post by **Nick Moss** » Sat Oct 09, 2010 9:16 am

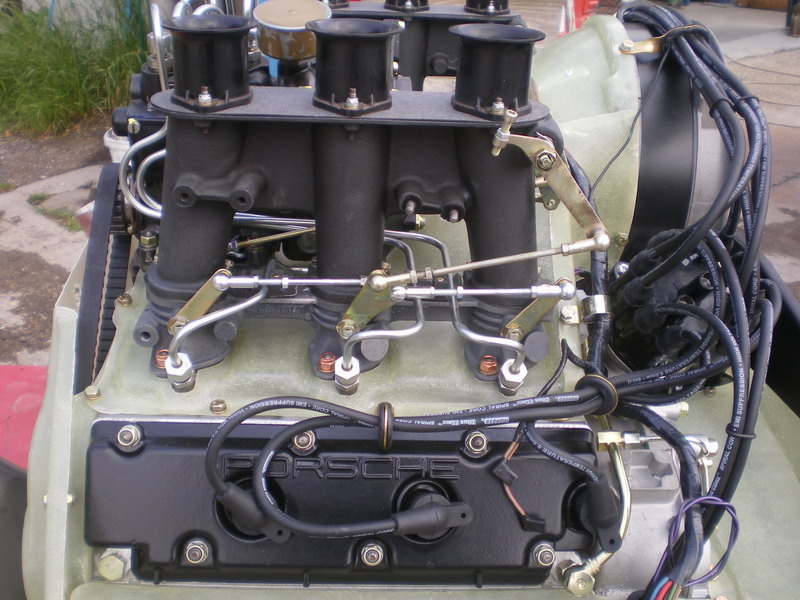

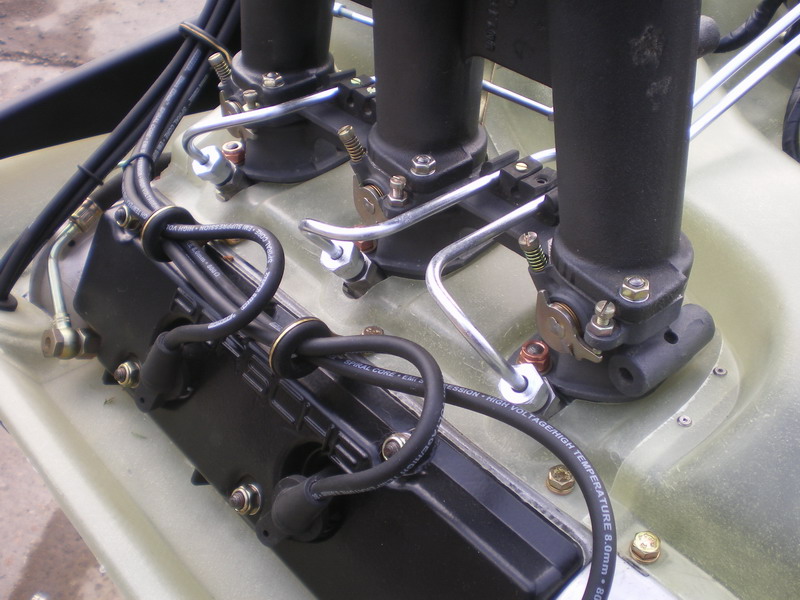

Yes, the ignition wires and caps came from JB Racing, as did the various wire guides and clips.
